ORDER PICKER

DESCRIPTION

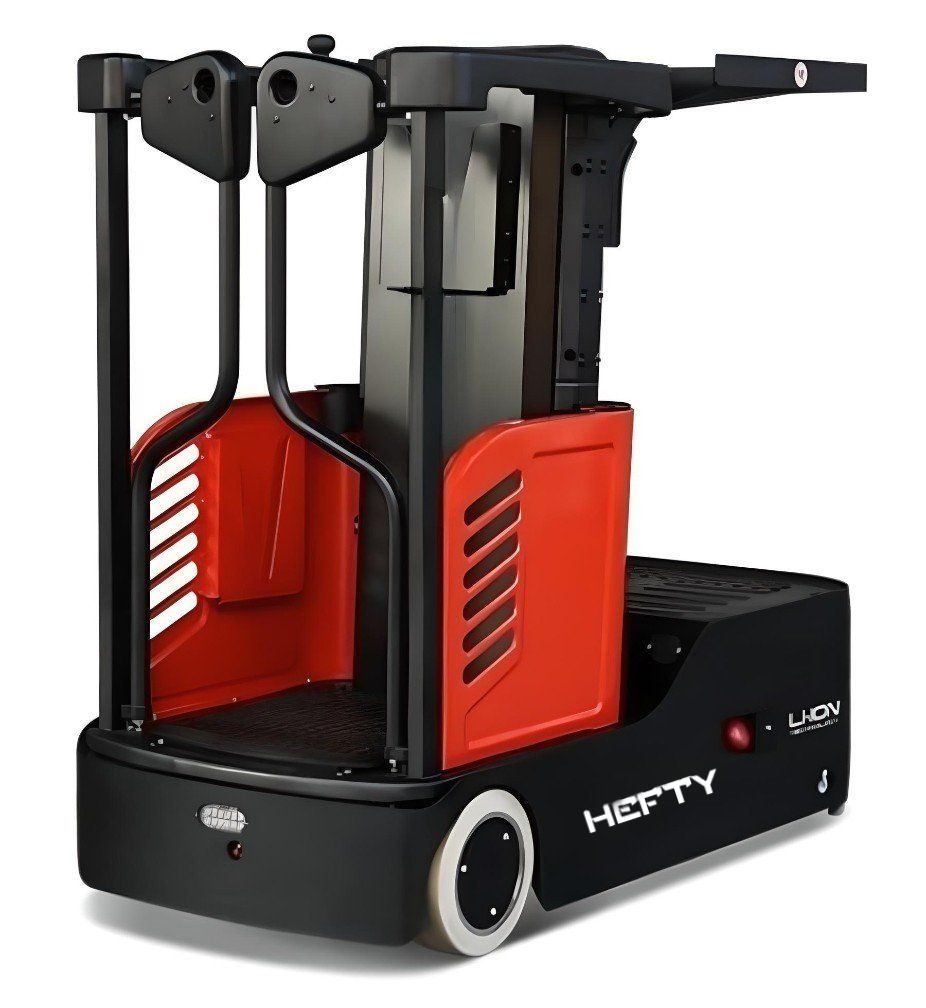

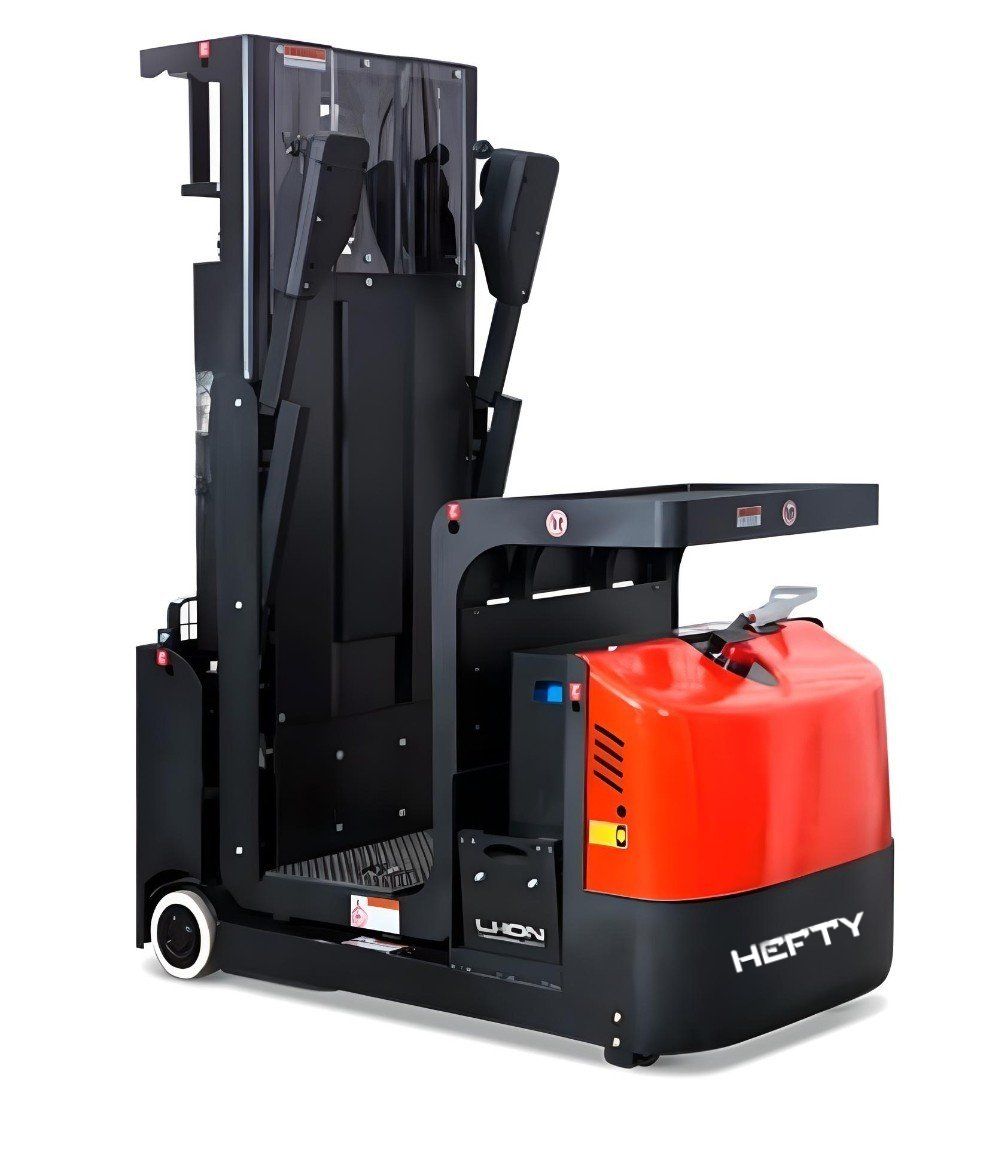

The Order Picker from EP Equipment is the new generation task support vehicle.

The main advantage compared to its competitors is the extremely stable mast and the intuitive user interface.

It plays out its strengths in smaller volume order picking as well as the retail environment.

It will reduce injuries in the work place and increase the efficiency in the warehouse.

APPLICATION

With its low self-weight and compact design, it was designed for narrow aisles as well as the retail environment.

The all new, it will increase safety and efficiency wherever goods have to be picked or stored in shelves and racks.

Work injuries during maintenance work in larger hights can be reduced compared to ladders due to the high stability, the possibility to reposition while man up and the large driver & storage compartment.

FEATURES

While other task support vehicles come with a difficult to learn and unconventional turning mechanism, it has a conventional steering wheel, allowing the driver to have perfect control over the vehicle.

It is easier to be steered around obstacles and around corners than any other task support vehicles.

The working area for the operator has been optimised.

It comes now with a more comfortable platform, to ensure less strain during a shift for the operator.

It also comes with more storage space for both paper, drinks and pens.

All drive and lift functions of the truck can be operated single handed. The drive control is proportional and very intuitive also for new operators.

1.1 Manufacturer HEFTY-EP HEFTY-EP HEFTY-EP HEFTY-EP HEFTY-EP HEFTY-EP
1.2 Model designation JX1(3200) JX1(4100) JX1(4880) JX2-1 JX2-3 JX2-4
1.3 Drive Electric Electric Electric Electric Electric Electric
1.4 Operator type Order-picker Order-picker Order-picker Order-picker Order-picker Order-picker
1.5 Load capacity Q kg 227/137/136 227/137/136 227/137/136 700/136 700/136 1000/136
1.6 Load center distance c mm —— —— —— 600 600 600
1.8 Load distance，centre of drive axle to fork x mm —— —— —— 140 140 115
1.9 Wheelbase y mm 1150 1150 1256 1280 1330 1365
2.1 Service weight kg 1160 1340 1530 1620 1820 1900
2.2 Axle loading, laden front/rear kg 680/980 740/1100 780/1220 1800/720 1880/640 2170/730
2.3 Axle loading, unladen front/rear kg 490/670 520/820 540/990 700/920 790/1030 730/1170
3.1 Tyre type Polyurethane/Solid rubber Polyurethane/Solid rubber Polyurethane/Solid rubber Polyurethane/Solid rubber Polyurethane/Solid rubber Polyurethane/Solid rubber
3.2 Tyre size, front mm Φ230×75 Φ230×75 Φ230×75 Φ150×90 Φ150×90 Φ165×120
3.3 Tyre size, rear mm Φ204×76 Φ204×76 Φ204×76 Φ230×75 Φ230×75 Φ260×105
3.4 Additional wheels (castor wheels) mm Φ74×48 Φ74×48 Φ74×48 Φ74×48 Φ74×48 Φ74×48
3.5 Wheels, number front/rear (x=drive wheels) mm 1x,2/2 1x,2/2 1x,2/2 1x，2/2 1x，2/2 1x，2/2
3.6 Tread width, front b10 mm 555 555 615 710 710 770
3.7 Tread width, rear b11 mm 740 740 784 570 570 570
4.2 Retracted mast height h1 mm 1510 2080 2090 1510 1800 2170
4.3 Free lift h2 mm —— —— —— 737 737 ——
4.4 Lift height h3 mm 4030 4930 5710 1063 2463 3200
4.5 Height, mast extended h4 mm 4540 5970 6750 2560 4745 5410
4.7 Height of overhead guard (cabin) h6 mm 1590 2120 2120 1560 2345 2270
4.8 Seat height/standing height h7 mm 250 250 250 220 220 220
4.14 Stand height, elevated h12 mm 3200 4100 4880 1220 2620 3360
4.15 Lowered height h13 mm —— —— —— 63 63 63
4.19 Overall length l1 mm 1500 1500 1610 2520 2725 2750
4.20 Length to face of forks l2 mm —— —— —— 1605 1655 1680
4.21 Overall width b1/b2 mm 800 800 860 800 800 860
4.22 Fork dimensions s/e/l mm —— —— —— 35/100/915 35×100×1070 40/100/1070
4.25 Distance between fork-arms b5 mm —— —— —— 560 560 540
4.32 Ground clearance, center of wheelbase m2 mm 50 50 50 50 50 50
4.34.1 Aisle width for pallets 1000×1200 crossways Ast mm —— —— —— 2950 3050 3100
4.34.2 Aisle width for pallets 800×1200 crossways Ast mm —— —— —— 3070 3160 3150
4.35 Turning radius Wa mm 1385 1385 1450 1470 1515 1600
5.1 Travel speed, laden/unladen km/h 5.5/5.5 5.5/5.5 5.5/5.5 8/8 8/8 8/8
5.2 Lifting speed, laden/unladen m/s 0.17/0.21 0.17/0.21 0.17/0.21 0.13/0.16 0.13/0.16 0.13/0.16
5.3 Lowering speed, laden/unladen m/s 0.35/0.26 0.35/0.26 0.35/0.26 0.16/0.18 0.16/0.18 0.16/0.18
5.8 Max. gradeability, laden/unladen % 0 0 0 0 0 0
5.10 Service brake Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic
6.1 Drive motor rating S2 60 min kW 1.7 1.7 1.7 2.5 2.5 4
6.2 Lift motor rating at S3 15% kW 2.2 2.2 2.2 3 3 3
6.4 Battery voltage/nominal capacity V/Ah 24/224 24/224 24/280 24/360 24/360 24/360
6.5 Battery weight kg 163 163 250 330 330 330
8.1 Type of drive control AC AC AC AC AC AC
10.5 Steering design Electronic Electronic Electronic Electronic Electronic Electronic
10.7 Sound pressure level at the driver's ear dB(A) 74 74 74 74 75 70
